New Build Timber Frame Home in Wokingham

Vision Development have been contracted to provide the timber frame for a new build home for our client in Wokingham.

The manufacture of all the panels took under 10 days including insulating, and with our experienced installation teams on site, all the ground floor and first floor panels (external and internal) have been fitted with the roof to be completed in the coming days (see below for the roof plan which is all to be traditional cut).

The footprint of the new home is 364m2 with a lot of requirement for steel due to the open plan layout for the ground floor. The house will feature a large kitchen/dining/ family room with TV/play corner and 8 large patio windows facing the garden.

Below are some photos of our progress so far…

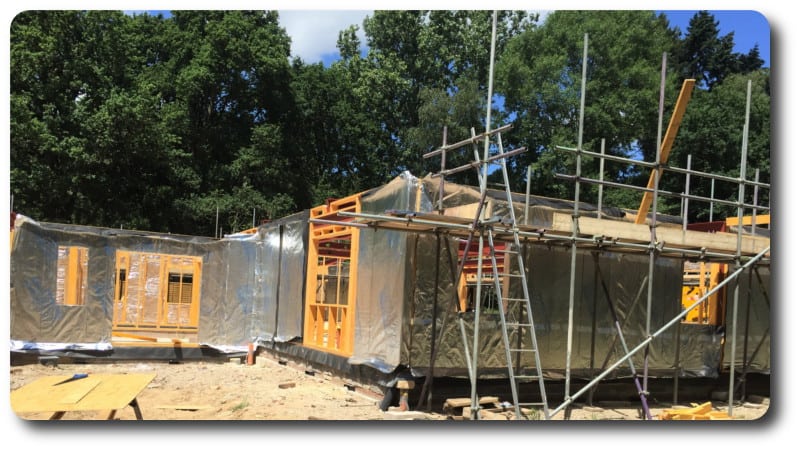

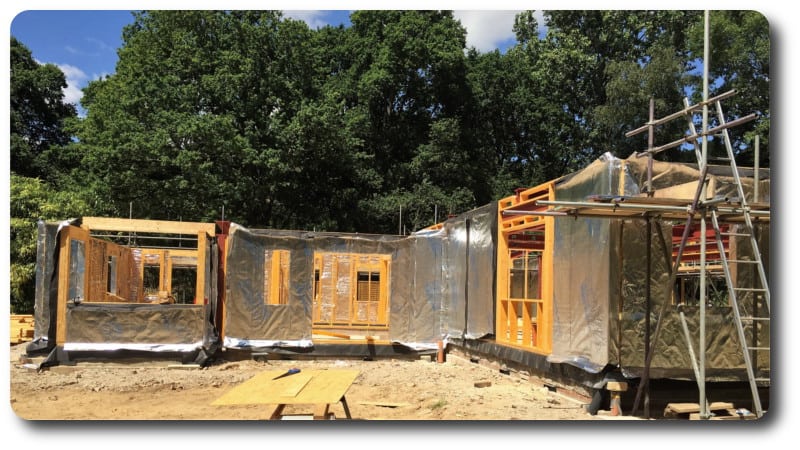

The external face of the panels are covered with TF200 Thermo Breather Membrane which not only protects the panels whilst construction takes place but provides the final wall construction with excellent thermal performance with its reflective finish.

The complete timber frame panel is manufactured within our own workshop facility in Beenham which consists of TF200 Thermo Breather Membrane, 9mm OSB3, 140mm Timber Frame and 105mm Hybris Insulation. The internal face of the external wall panel is left open for the first fix services to complete their works. The internal face of the panel will then require the Multi Foil Insulation with built-in vapour control battened down to the panel ready for plasterboarding.

Once all the ground floor panels are installed, along with the floor joists and chipboard flooring, the first floor panels will be delivered and the scaffolding will be amended ready for the roof structure to be constructed.

Here you can see the structural steel beams forming the open plan ground floor living area.

The first floor panels have been installed in this photo with the timbers delivered and ready for the erectors to use to form the roof structure.

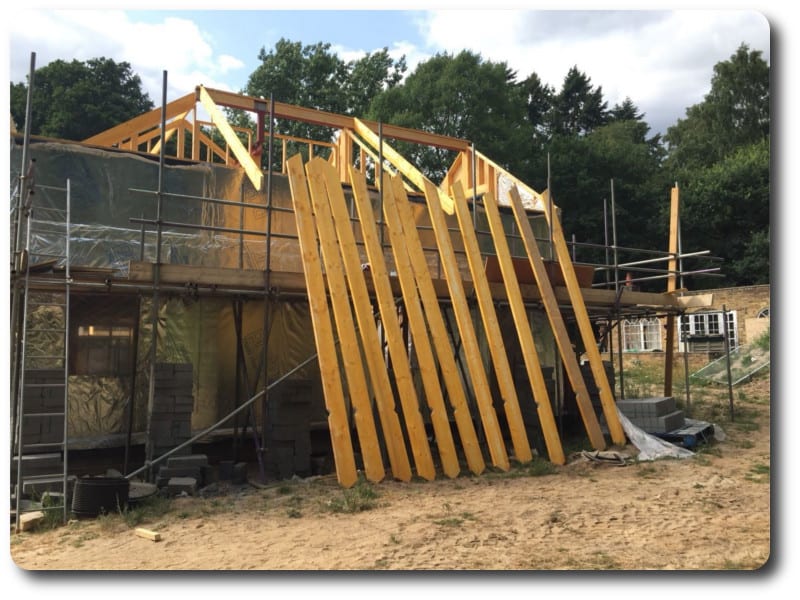

The lengths of timber are cut on site to form the rafters of the roof.

More steels were used in the roof to support the timbers forming the traditionally cut roof.

Here are photos of the more complete roof with the rafters installed forming dormer windows as well.

Here is a drawing of the roof plan to get an idea of the scale of works that are required on site by our experienced erectors, as standard trusses would not be suitable for this particular design of roof.

We shall provide more photos as the build develops with photos of the home with its final finishes so please keep checking back on our website for updates.
