New Build Home in Chandlers Ford, Eastleigh, Hampshire

Our Client contacted us this time last year (November 2016) wanting to compare the prices and benefits of using timber frame over brick and block. The Client had built 5 new builds in the past and was keen to learn the process of using timber frame, so on providing our quotation we invited the Client to our offices to discuss in further detail as well as arranging a site visit to a local new build we had recently completed.

February 2017 and the Client had obtained planning permission for the new build and with building regulation drawings provided in May 2017 we were able to arrange a site meeting with the Client to ensure all the logistics of the delivery of his new home would be completed safely and efficiently.

With the demolition and groundworks completed ready for the new foundation to be poured, we were booked in to start on site Tuesday 17th October 2017.

We are presently constructing the roof to the new build and are hoping to complete all works by 10th November 2017 including snagging items. Here are some photos of the build so far with more photos of the completed build to follow over the coming months.

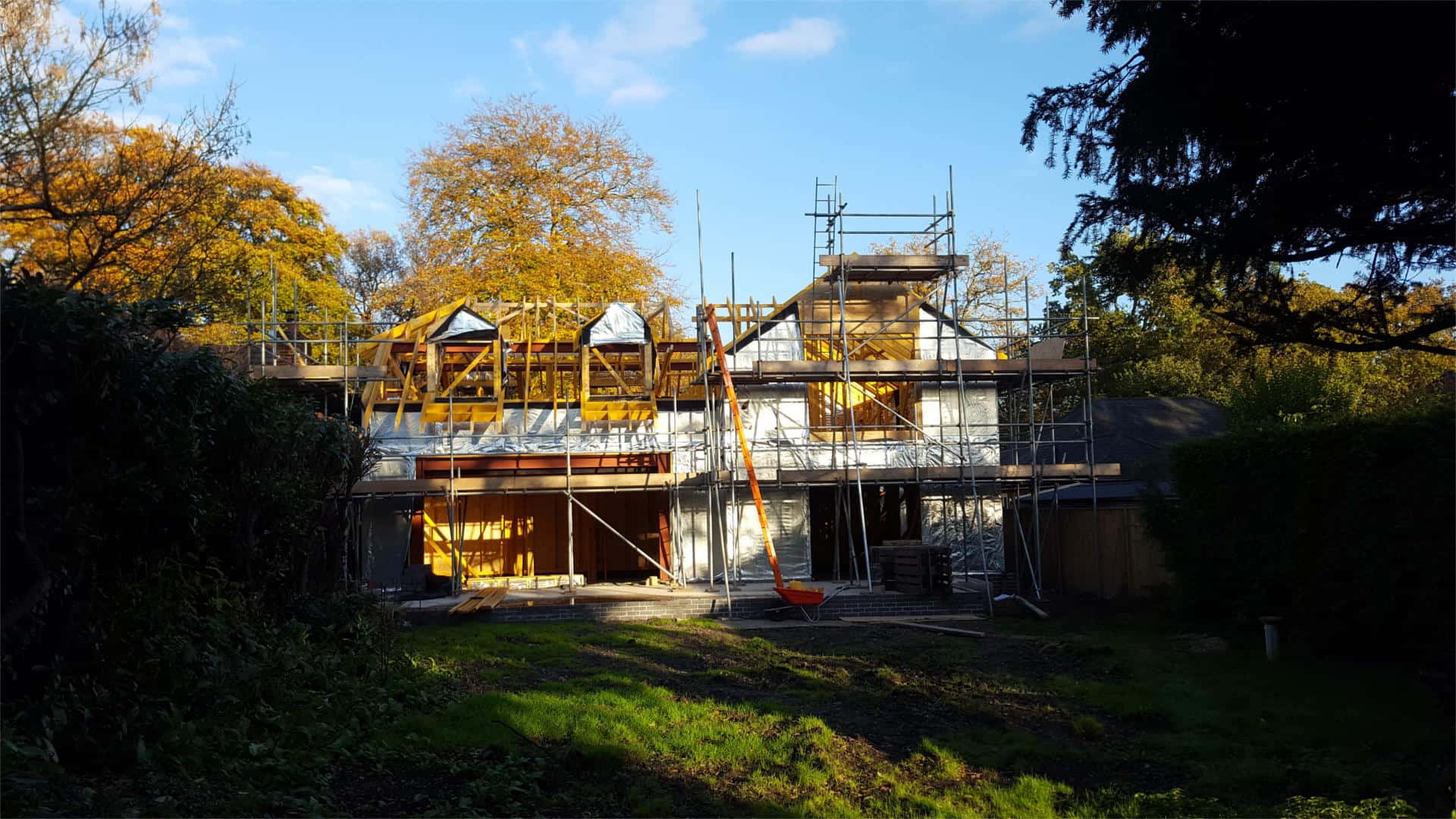

The rear view of the property showing the apertures for the patio windows to the ground floor as well as a large glazed area to the first floor which will also include a glass balcony.

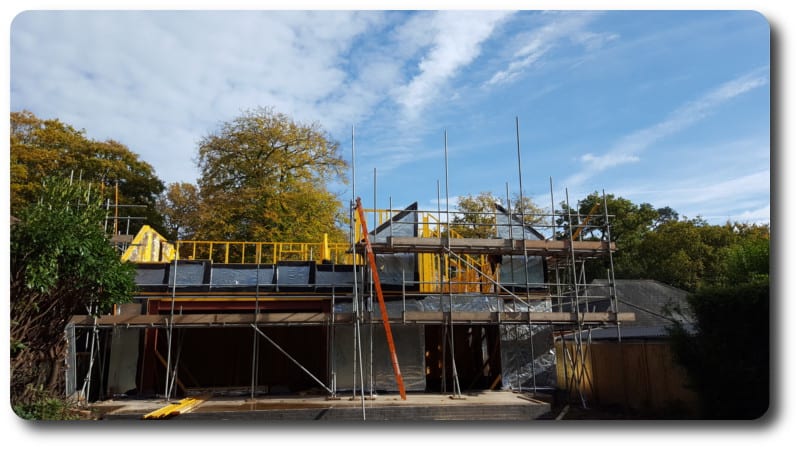

The front view of the property shows more glazing to be installed to both the ground and first floor which will give lots of natural light to the property.

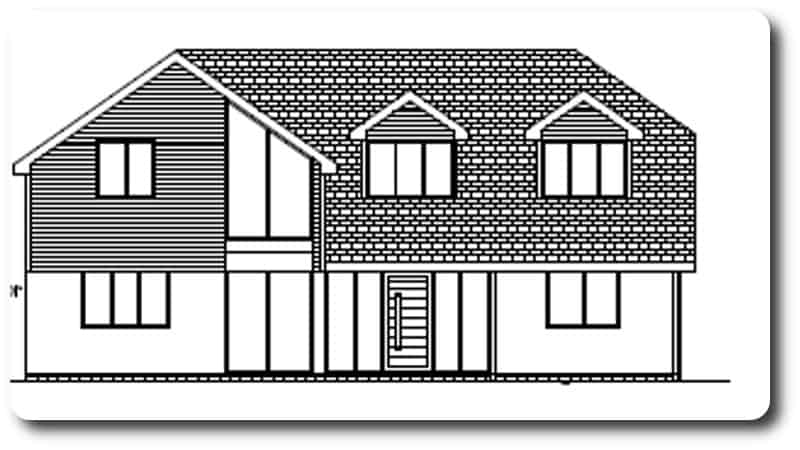

Above is a drawing of the proposed new frontage to the house.

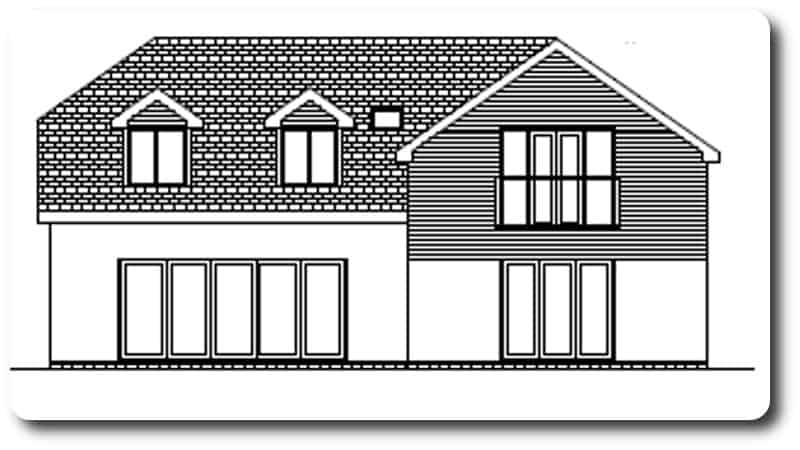

The drawing above shows the proposed finish to the rear of the property.

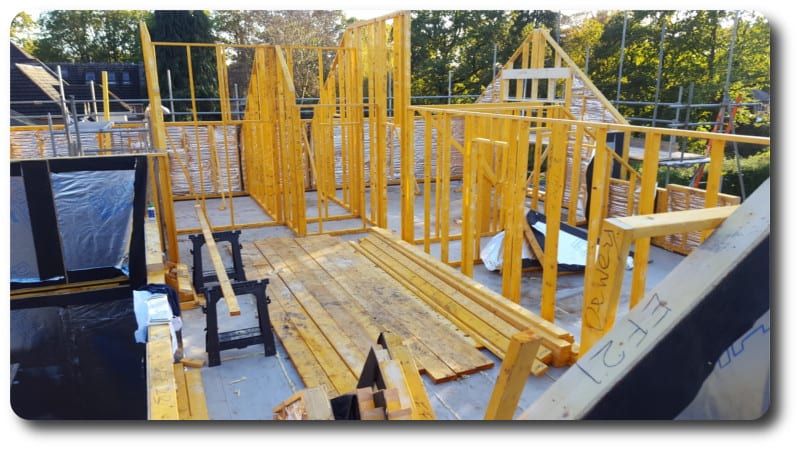

Now all the internal panels have been installed, the roof trusses can be installed and our work here is almost done!

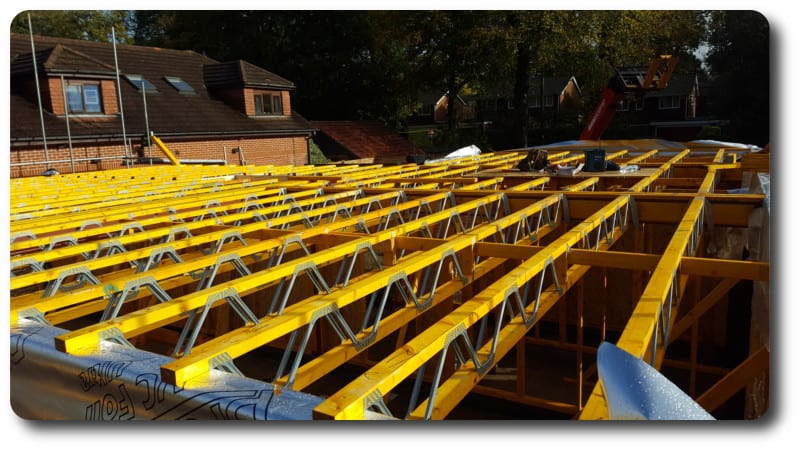

Below are some more photos of the build as it was in progress showing the posi metal web joists and internal stud walls.

We will keep you updated with more photos as the build progresses, so be sure to keep checking back on our website.

If you have your own self build project you would like to speak to us about, please get in touch by sending your drawings to lucy@vision-dsl.com or calling us on 0118 971 2181.
