This is a kit for a single floor 4 bedroom house of 390 square metres total floor area costing £148,200.
This is a timber frame kit for a four bedroom house with a stunning contemporary design featuring a glulam portal structure in Larch with timber frame panels between them. The total floor area (gross external) is 390 square metres (4197 square feet). The timber frame panels can be constructed to have a U Value of 0.18 with cladding finish.
The price for this kit is £148,200 which includes all our standard items (see what’s included in our timber frame house kits).
The guide price for a complete full build package for this house kit is £867,750. Vision can offer this package depending on location and final specification.

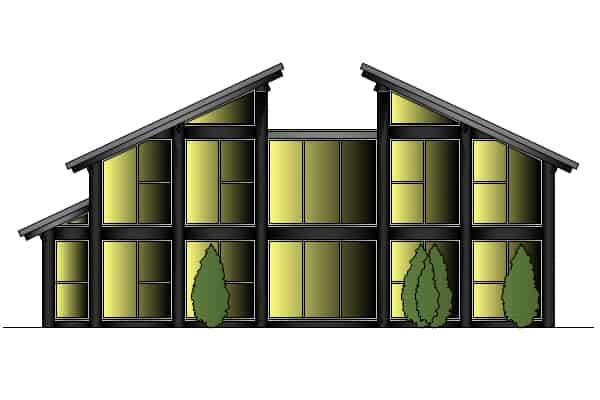

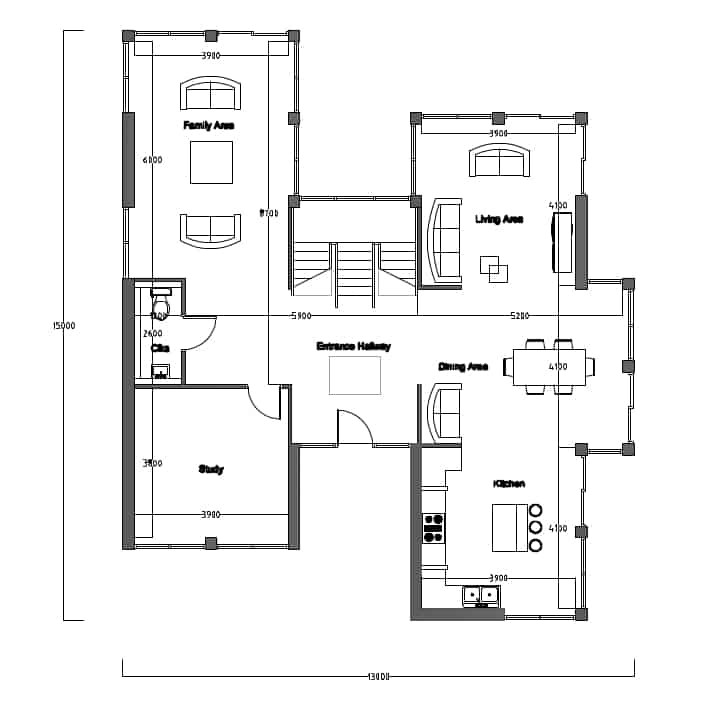

Room sizes, elevations, floor plans and a cross section of the timber frame panel are shown below. There are a number of optional additional items which we can include with our timber frame house kits including, but not limited to, insulation to external walls, internal plasterboard, external render or cladding finish. These items can be priced individually at a very competitive rate.
Our timber frame kits include…
- External (140mm x 38mm) panels with service void (no insulation)
- Internal (89mm x 38mm) panels (no insulation)
- Reflective breather membrane on cavity-facing side of external panels
- Engineered roof trusses & attic trusses (Traditional cut sections also included)
- Metal web joists plus 22mm chipboard flooring for two storey houses
- Delivery & installation including lifting plant
The guide price for a complete full build package for this house kit is £867,750. This guide price includes the following: groundworks, external timber frame structure, external windows and doors, external finishes as shown, internal panels and internal plaster & plaster boarding together with electric and plumbing services, bathrooms and decorating. The kitchen hasn’t been included for as we feel this is better suited to the Client to choose and arrange installation. Vision can offer this package depending on location and final specification
The room dimensions are as follows…
|Entrance Hallway||3.45m x 3.45m|
|Living Area||3.90m x 4.10m|
|Dining Area||4.10m x 5.20m|
|Family Area||3.90m x 6.00m|
|Study||3.90m x 3.80m|
|Kitchen Area||3.90m x 4.10m|
|Cloak Room||2.60m x 1.20m|
|Bedroom 1||3.90m x 4.10m|
|Bedroom 2||3.90m x 4.10m|
|Bedroom 3||3.90m x 4.10m|
|Bedroom 4||3.90m x 3.80m|
|Bathroom||2.60m x 2.10m|
Here is a cross section of the timber frame panel with a U Value of 0.18 which forms the basis for this kit. The panel shown in the image includes insulation within the external panel and a vapour control layer to the internal face, these have not been included for within our kit house prices. See what’s included in our timber frame house kits.
